All MTN XL
FRAME SPECS
(160mm travel)
Reach 528mm
Effective top tube 670mm
Seat tube (ctr to top) 470mm
Head tube length 140mm
Bottom bracket height 315mm
Chainstay length 440mm
Wheel base 1299mm
Head tube angle 64deg
Seat tube angle 78.5deg
Bottom Bracket BB92 press fit
Rear axle/Spacing 157X12 Super Boost
COMPONENTS
Headset Chris King IS 42/52 Gold
Fork Rockshox Yari RC 29+ 160mm, 15X110mm axle, 51mm offset
Wheels Rims: WTB KOM Tough i35, 29”, 32hole
Hubs Shimano Deore Centerloc 32hole F110X15m R157X12mm
Spokes/Nipples DT Swiss 14ga, alloy nipples-Gold anodized
Hand built by John @ Bear Creek Bicycle
Tires Teravail Coronado 29X2.8”
Stem MSW Dimension 35mm, 31.8 clamp
Handlebar Salsa Rustler 31.8 X 800mm
Grips Lizard Skins
Brakes Shimano Deore,
Rotors Tektro 203mm Centerloc Front and Rear
Drivetrain Shimano Deore
-12 spd 10/51t rear derailleur and cassette
-175mm cranks, Blackspire Snaggletooth 28t chainring
-Super Boost 157mm rear axle
Saddle San Marco Bioactive
Seatpost Kind Shock Rage iDropper 190mm, 31.6, w/remote
Pedals Raceface Chester Black
TUBE SET
Head Tube IS 42/52 tapered
Front triangle/Main tubes Reynolds 853
Chainstays Nova Superlight, Oversize, S bend
Seatstays Nova 19mm, custom curved
BB shell BB 92 press fit
Drop-outs Paragon low-mount, with custom integrated post style brake
mount (203mm rotor specific)
PAINT

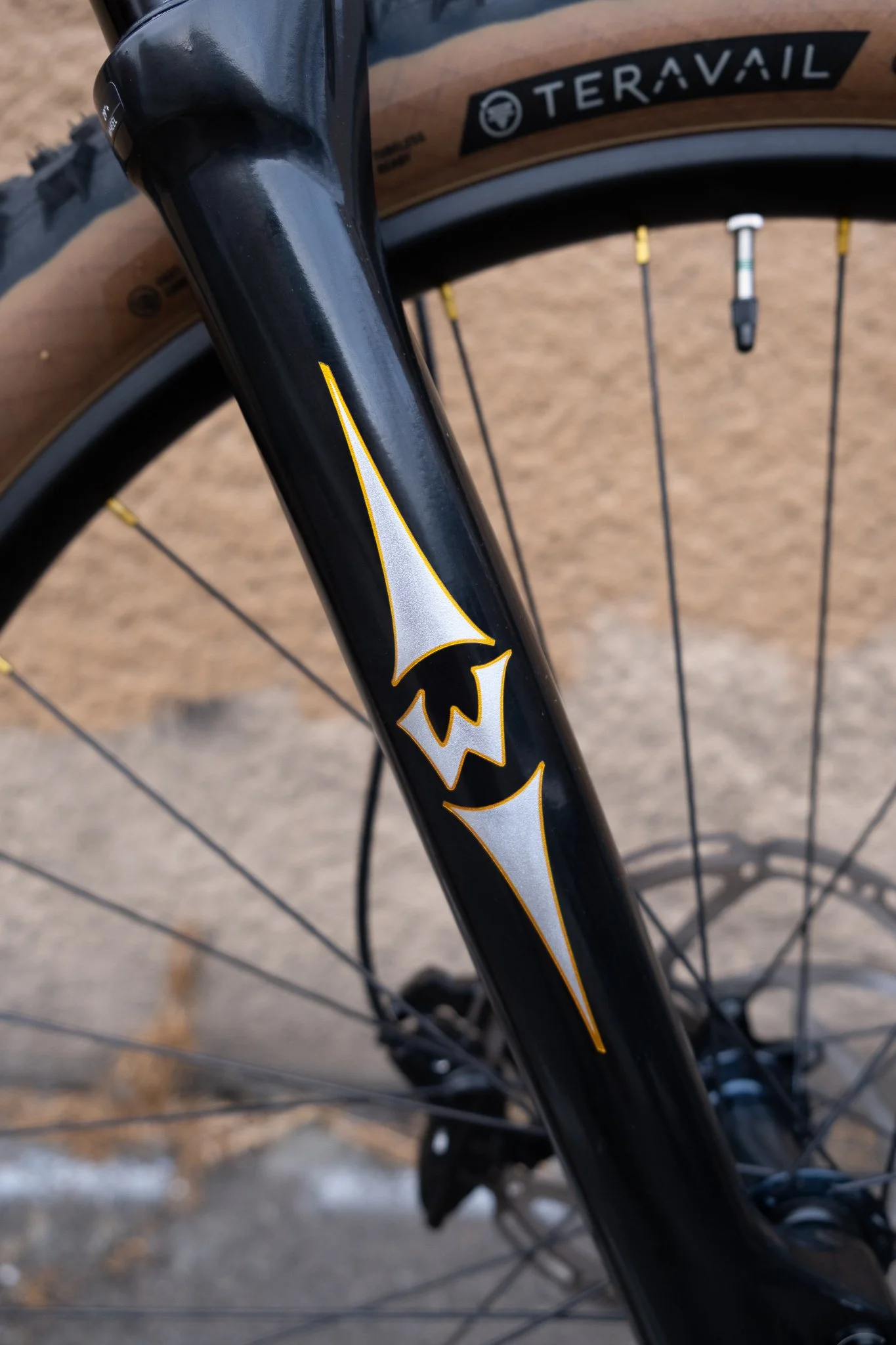

Gun metal grey with gold accents and custom dog logos. Custom logos painted on fork. White bronze head badge.
FEATURES
-Mounts and clearance for two large water bottles on down tube
-3rd WB/Tool, or small frame bag mount on underside of top tube
-Custom post style rear brake mount
-Clearance for 3” tires
